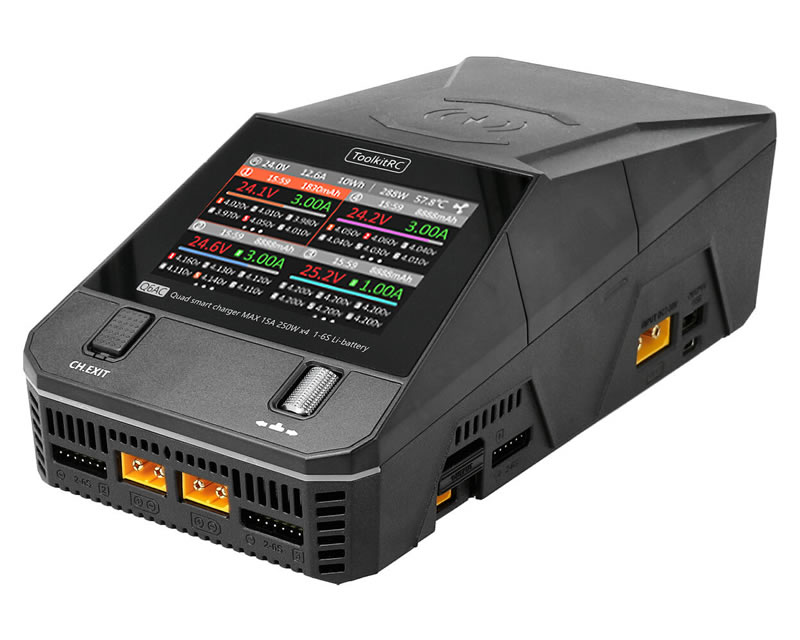

The Q6AC is a four-channel charger with up to 250W charging power, which is also equipped with a balancer function and an IPS display. The menu navigation via the roller makes the operation simple and uncomplicated.
Features:
- Max. 250W charging power on all four channels and a maximum of 5A charging current
- Up to 12W discharge power per channel at max. 3A (max. 250W in Recycle Mode at up to 15A)
- Adjustable shutdown voltage for lithium batteries
- Large internal memory for up to 32 batteries and 3 groups
- Multilingual user interface
- Firmware upgrade via USB
Technical Specifications:
- Input Voltage AC: 100-240V, max. 5.0A
- Input Voltage DC: 7-30V, max. 50A
- Charge Power DC: 0.1-15A, 250W x4
- Charge Power AC: 0.1-15A, 250W x2
- Charge Power AC: 0.1-15A, 100W x4
- Discharge Power (Normal Mode): 0.1-3A, 12W x4
- Discharge Power (Recycle Mode): 0.1-15.0A, 250W x4
- USB A: USB-A 30W at Upgrade
- USB C: USB-C 20V at 65W (PD,QC,AFC,FCP,SCP,PE,SFCP,VOC)
- Balance Current: 800mA, 2-6S
- Cells: LiPo/LiFe/LiIon/LiHV 1-6S
- Cells: NiMH/NiCd 1-16S
- Pb Battery Voltage: 1-10S
- Voltage: 1.0V-5.0V, 1-6S
- Display: IPS IPS 3.5" 480x320px
- Dimensions: 220x113x82mm
- Weight: 1120g
