Combo ESC Razor 160A + Prog. Card + BLH-3650 13.5T x modelli 1:10 1:12

Codice: SAXCOMBO160135
Prezzo: €229.00

SPESE DI SPEDIZIONE GRATUITE

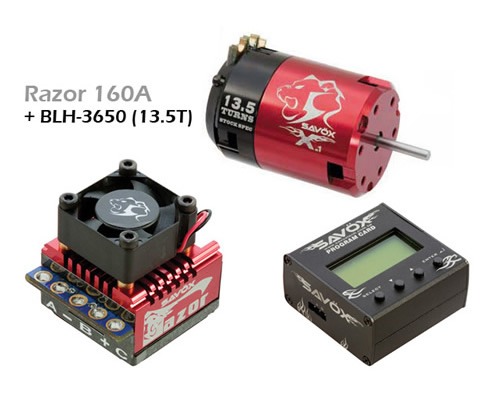

Combo ESC Razor 160A + Prog. Card + BLH-3650 13.5T x modelli 1:10 1:12.

Savox Razor 160A Electric Speed Controller + BLH-3650 13.5T

Nuova linea Savox di motori Brushless e ESC regolatori di velocita' per automodelli On-Road e Off-Road 1:10 e 1:12.
Combo con motore Savox BLH-3650 Sensored per Buggy per 1:10 e regolatore Savox Razor da 160 A continui (400 A di picco) e Program Card.

I motori BLH-3650 disponibili sono:
- 4.5T 7700
- 5.5T 6400
- 6.5T 5500
- 7.5T 4800
- 8.5T 4350
- 9.5T 3900
- 10.5T 3550
- 13.5T 3050
- 17.5T 2200
- 21.5T 1900
- 23.5T 1600

Le caratteristiche principali del Razor sono:
Regolatore per motori Brushless Sensored con carico continuo 160 A e 400 A di picco.
Tensione d'ingresso da 7,4 V - 9,9 V per batterie 2S o 3S LiPo LiFe.
Modalita' di guida in avanti, freno, retromarcia (commutabile).
Dimensioni piastra di piano solo 31,2 mm x 32,6 millimetri.
Altezza di soli 21,3 mm senza ventola, e cavi della ventola con peso solo 88 g.
Per motori da 4.5T, BEC 6 V - 3 A, 14 parametri regolabili (tempi, i tempi turbo, Delay Turbo, Turbo Interval, punzone, accelerazione, campo neutro, inversori di spinta, resistenza freno, freno, tipo di scatto, tipo di batteria, Cut-off, surriscaldamento) compreso di program card.

ESC Specifications:
- Classes: 1:12 - 1:10 scale
- Weight: 105g incl. wires - fan
- Modes: Fwd/Brk, Fwd/Brk/Rev, Fwd/Rev
- Fwd/Paused/Rev
- Continuous current: 160A
- Peak current: 400A
- BEC: 6V/3A
- Input voltage: 7.4V-9.9V (2S Lipo)
- Motor limit: 540 size 4.5T sensored
- Footprint: 31.3x32.6mm
- Height: 27mm w/o fan, 37mm w/fan
- Programmable using programming box

The compact programming box is included with the speed controller to make quick and easy set-up adjustment in just a few seconds.

Adjustable Parameters:
1. Timing
2. Turbo timing
3. Turbo delay
4. Turbo interval
5. Punch
6. Acceleration
7. Zero range (deadband)
8. Reverse force
9. Drag brake
10. Brake force
11. Running mode
12. Battery type
13. Battery protection
14. Overheat protection

Brushless Inner Runner Motor / BLH-3650 4.5T
- Motor KV(RPM/V): 4.5T
- Weight: 180.0g (6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 79
- Max. power (W): 584
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

Brushless Inner Runner Motor / BLH-3650 5.5T
- Motor KV(RPM/V): 5.5T
- Weight: 180.0g (6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 65
- Max. power (W): 481
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

Brushless Inner Runner Motor / BLH-3650 6.5T
- Motor KV(RPM/V): 6.5T
- Weight: 180.0g (6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 55
- Max. power (W): 407
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

Brushless Inner Runner Motor / BLH-3650 7.5T
- Motor KV(RPM/V): 7.5T
- Weight: 180.0g (6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 50
- Max. power (W): 370
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

Brushless Inner Runner Motor / BLH-3650 8.5T
- Motor KV(RPM/V): 8.5T
- Weight: 180.0g (6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 48
- Max. power (W): 355
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

Brushless Inner Runner Motor / BLH-3650 9.5T
- Motor KV(RPM/V): 9.5T
- Weight: 180.0g (6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 45
- Max. power (W): 333
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

Brushless Inner Runner Motor / BLH-3650 10.5T
- Motor KV(RPM/V): 10.5T
- Weight: 180.0g (6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 42
- Max. power (W): 310
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

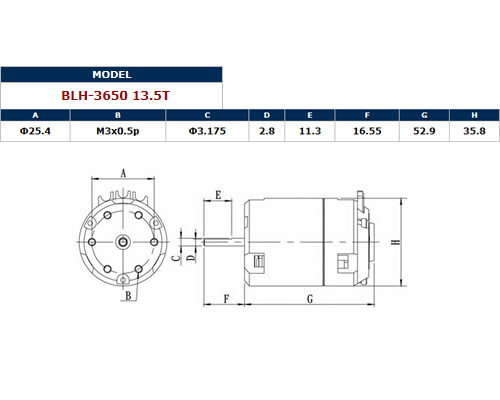

Brushless Inner Runner Motor / BLH-3650 13.5T
- Motor KV(RPM/V): 13.5T
- Weight: 180.0g (6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 33
- Max. power (W): 244
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

Brushless Inner Runner Motor / BLH-3650 17.5T
- Motor KV(RPM/V): 17.5T
- Weight: 180.0g (6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 25
- Max. power (W): 185
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

Brushless Inner Runner Motor / BLH-3650 21.5T
- Motor KV(RPM/V): 21.5T
- Weight: 180.0g (6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 20
- Max. power (W): 148
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

Brushless Inner Runner Motor / BLH-3650 23.5T
- Motor KV(RPM/V): 23.5T
- Weight: 180.0g(6.4oz)
- Dimension (mm): 35.8x52.9 (1.41"x2.08")
- Shaft size (mm): 3.17x59.43
- Max. current (A): 18
- Max. power (W): 133
- Voltage : 4-12 NiCd/NiMh (2S LiPo)

Richiedi la disponibilità del prodotto

Quantità:

Combo ESC Razor 160A + Prog. Card + BLH-3650 13.5T x modelli 1:10 1:12 savox SAXCOMBO160135

Trova video

Discuti sul forum

Cerca nel blog

Mercatino dell'usato

Se non specificato chiaramente, tutti gli articoli sul sito sono in scatola di montaggio e le istruzioni di montaggio (se disponibili) in inglese!
