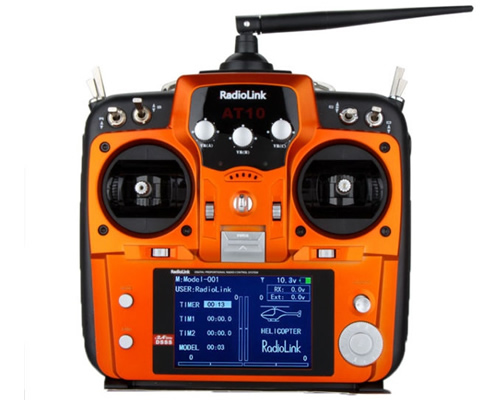

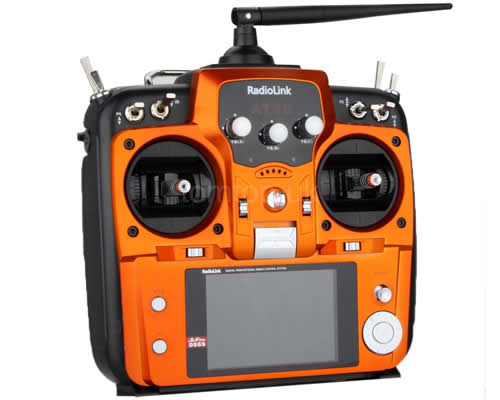

RadioLink AT10 2,4 GHz 10 Ch Remote Control System Transmitter R10D Receiver
Codice: RADAT10 Prezzo: €225.00
SPESE DI SPEDIZIONE GRATUITE
RadioLink AT10 2,4 GHz 10 Ch Remote Control System Transmitter R10D Receiver
Orange and Black RadioLink AT10 2.4G 10CH Remote Control System Transmitter R10D Receiver
Feature:
Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.

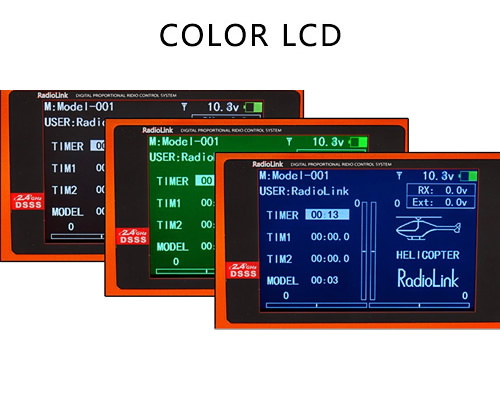

3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.
Great control distance: 1.1km on the ground,2km in the sky.
Expansion feedback module,users can get plane details in real time.
Make very setting clear and exactly output result.
Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.
High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.
Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.
Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.
Technical Parameter:
1.Frequency: 2.4GHz ISM band (2400MHz-2485MHz).
2.Modulation mode: QSPK.
3.Channel bandwidth: 5.0MHz.
4.Spread spectrum: DSSS.
5.Adjacent channel rejection: ?38dBM.
6.Transmitter power: 100mW(PCB testing); 20dBm(3 meter air testing).
7.Operating Voltage: 8.6-15V.
8.Operating Current: 95mA.
9.Control distance: 800 meters ground.
10.Channel: 10 Channel,8-10 channel are customizable.
11.Compatible model: Include all 120 degree and 90 degree swashplate helicopter, all fix wing and glider, five flying model.
12.Simulator model: under the simulator.

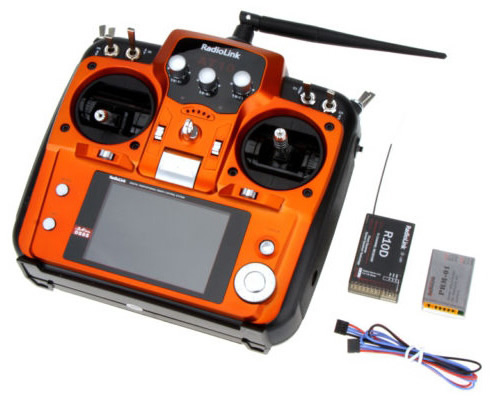

Package list:
- 1 x Orange RadioLink AT10 10CH Transimitter (Mode 2)

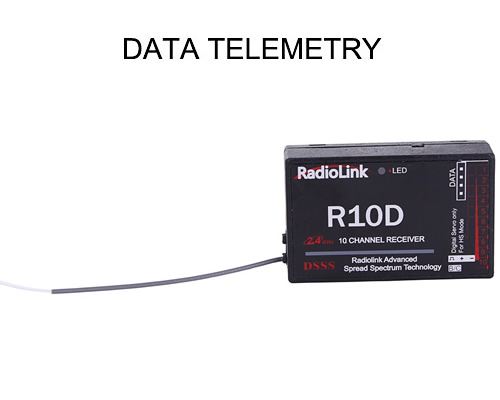

- 1 x R10D 10Ch Receiver
- 1 x PRM-01 Voltage Return Module
- 1 x 4Pin Connector
- 1 x English Manual
