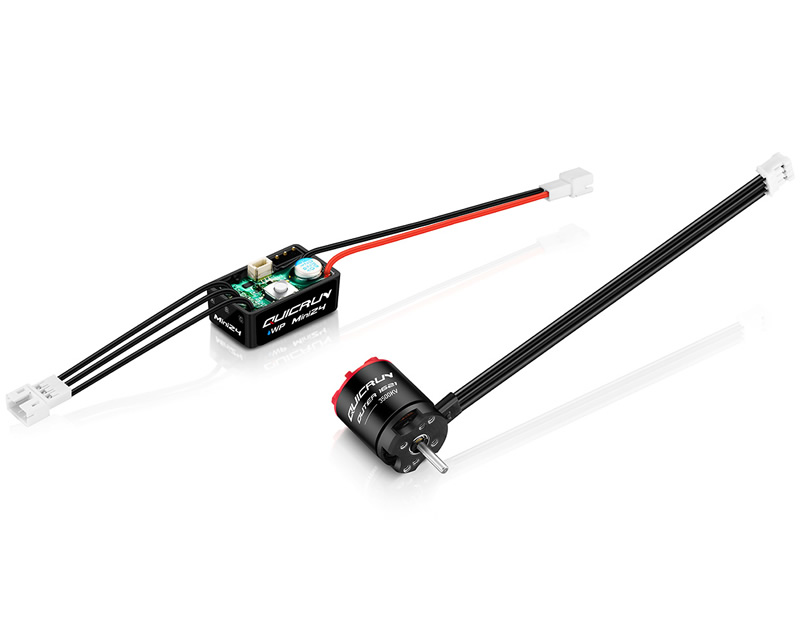

Together with the new QuicRun WP Mini24, the Outer 1621 SL motor is the perfect combination for small crawler models. The PH 2.0-3PIN connector allows for easy connection of the controller and motor, offering smooth and highly efficient compatibility.
Features (QuicRun WP Mini24 ESC):
- Integrated BEC switch mode
- 13 customizable parameters
- IP67 protection
- Waterproof switch
- Programming port with AUX function (real-time drag brake force adjustment)
- Designed for 1/16, 1/18, and 1/24 rock crawlers
- Control of brushed and brushless motors
*The above-mentioned IP67 protection rating means that the ESC is splash-proof, water-resistant, and dustproof under normal use. This protection is not permanent, and the protection performance may decrease due to daily wear and/or aging. Do not submerge the ESC in water for extended periods, as this may cause damage.
Technical Data (QuicRun WP Mini24 ESC):
- Type: Brushless/Brushed, Sensorless
- Current (continuous/peak): 25A / 60A
- Input Voltage: 2-3S LiPo
- BEC: 6V/7.4V (Switch Mode)
- Motor Types: Sensorless / Brushed - Brushless
- Waterproof: Yes
- Connector: PH 2.0-3PIN
- Programming: LED programming card, LCD programming box Pro/G2
- Dimensions: 28 x 17.8 x 13mm
- Weight: 13.5g
- Suitable Vehicles: 1/16, 1/18, and 1/24 rock crawlers
Features (QuicRun Outer 1621 SL):
- Perfect combination with the WP Mini24
- Excellent low-speed linearity
- Silicone cable output
- Use of high-quality materials
- Low cogging effect and minimal torque ripple
