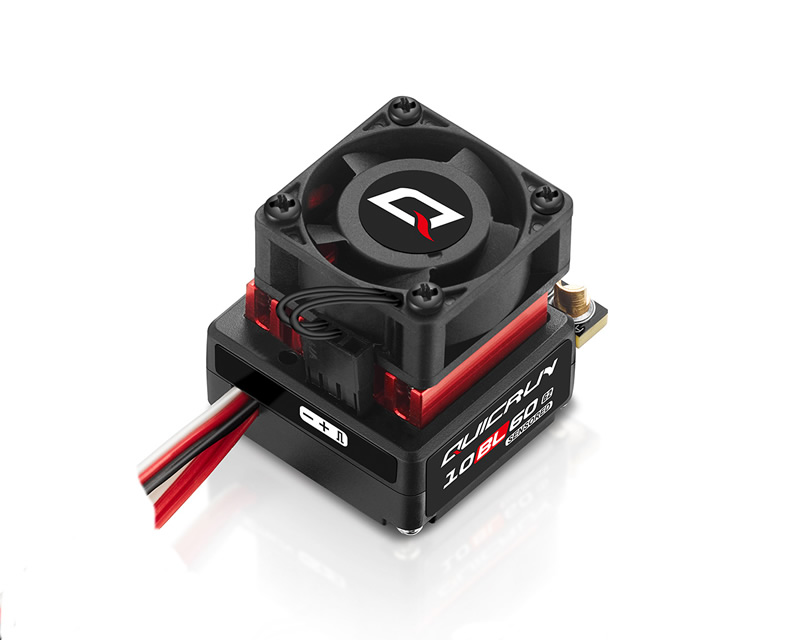

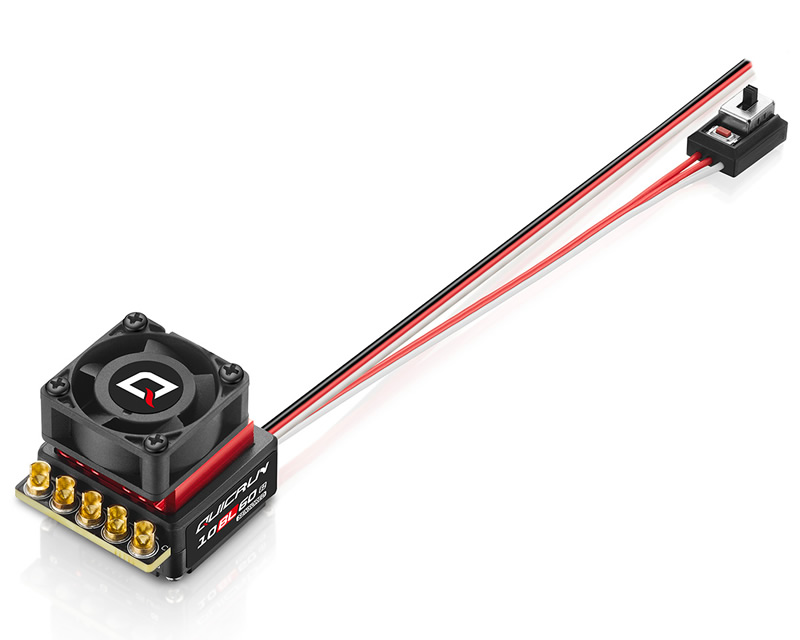

Hobbywing - QuicRun 10BL60 G2 60 A Sensored ESC 2-3S.
The 2nd generation of the QuicRun 10BL60 Sensored ESC offers a classic and solid brushless solution for 1/10, 1/12, and 1/14 models. Compared to its predecessor, the 10BL60 Sensored G2 is equipped with a more powerful BEC, enabling it to easily supply HV and high-torque servos. Additionally, the ESC supports Boost/Turbo timing, delivering maximum power and performance.
Features:
- User-friendly operation and installation
- Durable and robust design
- Multiple protection mechanisms (low voltage, temperature, signal loss, overload)
- High-performance BEC (6V/7.4V)
- Programmable via LCD Pro Programmer Box, LED Programmer Box, and SET button
- Supports CCW and CW rotation
Technical Specifications:
- Type: Brushless, Sensored
- Current (continuous/peak): 60A / 200A
- Input Voltage: 2S LiPo
- BEC: 6V/7.4V at 4A (Switch Mode)
- Motor Types: Brushless
- Motor Limit: >-8.5T 3650
- Waterproof: No
- Fan: Yes, powered by the BEC
- Programming: SET button, LED Programming Card, LCD Pro Programmer Box
- Dimensions: 35x31x30.8mm
- Weight: 66.5g
- Suitable Vehicles: 1/10, 1/12, 1/14 On-/Off-Road
Accessories (optional):
- HW30502002 LCD Pro Programmer Box
- HW30501003 LED Programmer Box
