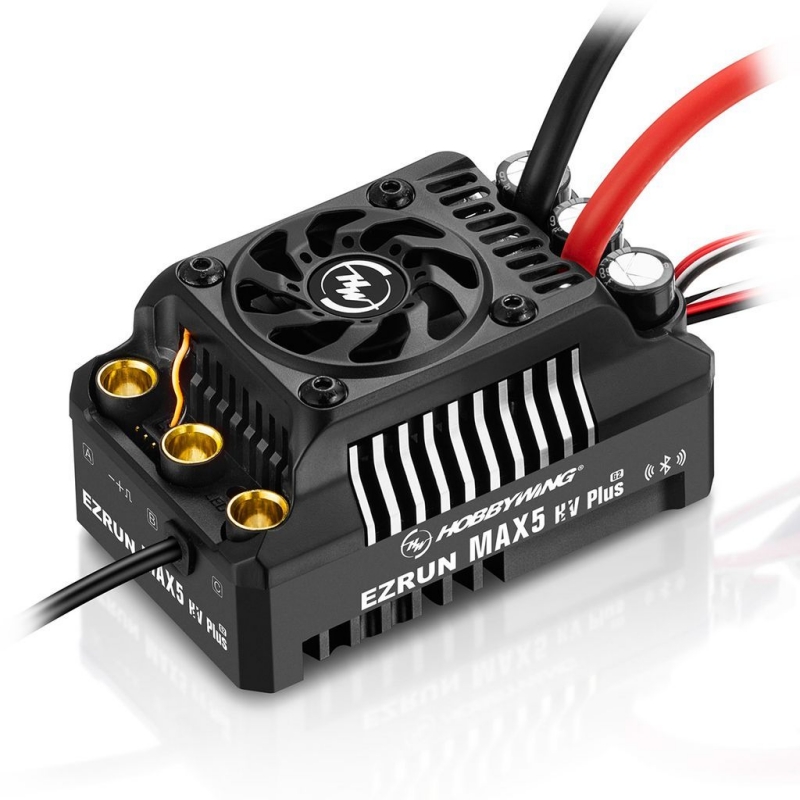

The EzRun MAX5 HV Plus G2 now delivers even more power! This high-voltage brushless ESC is designed for extremely high speeds and provides maximum performance with up to 12S LiPo perfect for demanding racing situations. In combination with a 2-pole motor, impressive speeds of up to 300,000 RPM are possible!
The intelligent freewheeling function automatically optimizes efficiency and lowers operating temperature, ensuring exceptional reliability and stability. Additionally, the MAX5 HV Plus G2 ESC features integrated Bluetooth and a data logging module that records and stores up to 10 minutes of operational data. On the software side, the ESC supports turbo timing when paired with EzRun 5690/56118 G2 motors, increasing maximum speed by another 18%.
The hardware is also impressive: A powerful 4080?F capacitor with integrated overheat protection ensures stable performance. Furthermore, the AS150 anti-spark connectors prevent sparks when connecting HV LiPos.
Highlights
- Intelligent freewheeling function
- Integrated Bluetooth for the app
- Data logging
- IP67 protection class
- High-performance BEC with 6V/7.4V/8.4V and max. 28A output!
- Up to 300,000 RPM possible
- Turbo timing (24 degrees) in combination with EzRun 5690/56118 G2 motors
- Anti-spark connectors
