Il Predator V2 CE e' Certificato per l'utilizzo in Italia.

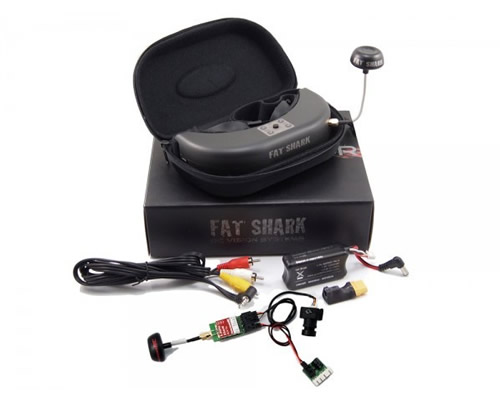

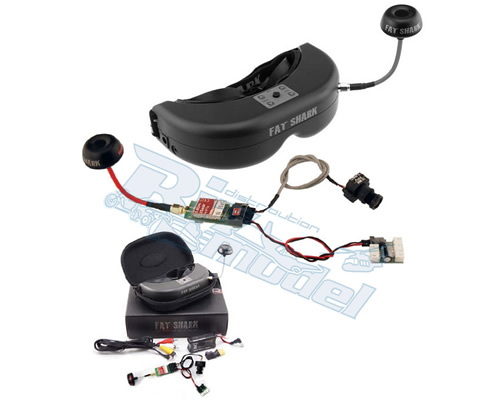

The PredatorV2 CE is the first license free FPV kit that actually delivers fantastic performance with a solid video link up to 500m off the headset alone. This remarkable performance is achieved by this special CE bundle that pairs the high performance NexwaveRF receiver with the SpiroNET circular polarized antenna. The robust ImmersionRC 25mW transmitter supports up to 6S packs (25V) and can be powered directly from almost any RC pack. The bundle also includes the latest generation FPV Tuned 600TVL CMOS with a wide angle lens for simple fixed camera video piloting. An optional GoPro/Phantom kit is available to convert your Phantom or Walkera X350 into an FPV filming platform. The custom mount has a special bracket to mount the CMOS camera to the GoPro holder in order to video pilot via the CMOS camera. Range can be extended to over 2km with the addition of an external ImmersionRC 5G8 receiver and 13dBi circular polarized panel antenna (still license free).
Headset Specifications
Optics:
- FOV (field of view): 25 degrees diagonal
- Interpupillary (IPD) distance: 63.5 mm (fixed)
- Optional diopter lens inserts: -2, -4, -6 dpt
- Image size: 38" at 7'
Audio:
- Stereo
User Controls:
- Channel selection
- Volume control
- Mode selection (wired/wireless)
- Contrast/ brightness control
Electrical:
- Power supply: 7 - 13 V (2S/3S supply)
- Power consumption (at 7.4 V nominal):
- 300mA wireless mode
- 160mA direct mode (no RX)
Antennae:
- External circular polarized -2.15 dBi
Mechanical:
- Ergonomic molded headset w/ adjustable headband
- Secured rubber eye cups for ambient light reduction
- Weight: 150 g
Display:
- Full color Kopin CyberDisplay
- 922,000 pixels binocular display (640x480 VGA)
- NTCS/PAL auto selecting
Head Tracker:
- None (available for OEM orders)
Battery:
- 7.4 V 1000 mAh
- Balance lead and discharge adapter for charging via RC chargers
Interface:
- 3.5 mm AV in/out port
- Power in port
- 3.5 mm 3p earphone port
- PS/2 DIN additional power port
Operating Frequencies:
- 5.8 GHz Module
- 5740MHz, 5760Mhz, 5780MHz, 5800Mhz, 5820MHz, 5840Mhz, 5860Mhz
Camera Specifications:
Electrical:
- Power supply: 3.5 - 5 V (powered off TX)
- Power consumption: 75 mA at 5 V)
Imager:
- 1/3" CMOS
- FPV tuned light handling
- NTSC or PAL (selectable; jumper on = NTSC)
Lens:
- 2.8mm IR coated
- 100 degrees diagonal FOV (ideal for fixed camera)
Mechanical:
- Square: 21x21x12 mm
- Lens extrude: 15x14 mm diameter
- Weight: 15 g
Transmitter Specification:
Electrical:
- Power supply: 7 - 25 V
- Power consumption 150mA at 7.4 V
- Transmitting power: 25 mW
- Frequency: 5.8 GHz (see above frequency chart)
Antennae:
- Fixed 2.15 dBi circular polarized
Mechanical:
- 50x23x12 mm
- Weight: 25 g (with antenna)
Combined onboard FPV components (TX, camera, filtered power adapter):
- Power supply: 7 - 25 V
- Power consumption: 225 mA at 7.4 V
- Powered via battery balance lead
- Total weight: 47 g (with antenna, wires)
