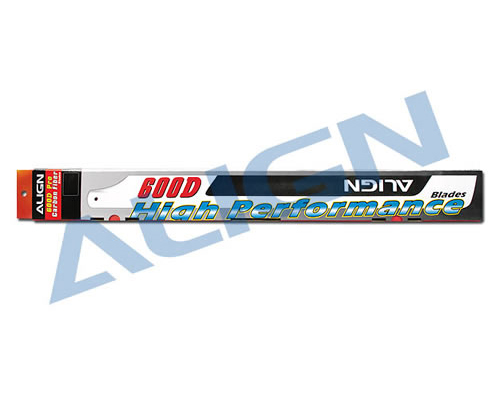

600 3G Programmable Flybarless System (Black) with Carbon Fiber Blades.
Suitable for T-Rex 600.
3-axis gyroscopic flybarless system to simulate the stability of mechanical flybar system, yet at the same time achieving agile 3D performance.
Utilizes Silicon Micro Machine (SMM) sensors for excellent stability.
12 bit processors providing ultra high resolution, resulting in highly precise controls.
Software upgradable through PC interface adapter (sold separately).
Simplistic setup process without the need of external devices. Setup is done through 5 steps and 2 sensitivity adjustments. Rudder setup is identical to GP780 gyro, minimizing learning curve.
Flybarless system dramatically improves 3D power output and efficiency, resulting in reduced fuel or electricity consumption.
Highly sensitive gyroscopic sensors combined with advanced control detection routine providing higher hovering and aerobatic stability than other flybarless system.
Suitable for all CCPM and mechanical mixing system.
Comaptible with helicopter of all sizes from T-Rex 250 to T-Rex 700.
Innovative Pitch Gau as an aid to facilitate pitch adjustments.
High frame rate signal output for faster and higher precision servo response.
Capable to operate between 4.5 V to 8.4 V, compatible with high voltage servos.
Small footprint, light weight, minimalists and reliable design.
Specification:
- Suitable Voltage Range: DC 4.5-8.4 V
- Current Comsumption: minor 80 mA at 4.8 V
- Flip and Roll rate detection speed: +-300 degrees/sec
- Rudder rate detection speed: +-500 degrees/sec
- Sensor resolution: 12 bit
- Operating temperatur: 0-65 degrees
- Operating humidity: 0-95 percent
- RoHS certified
Dimension:
- Control box: 42x26.5x14.5 mm
- Sensor: 22.3x21.7x14 mm
Weight:
- Control box: 16 g
- Sensor: 9 g

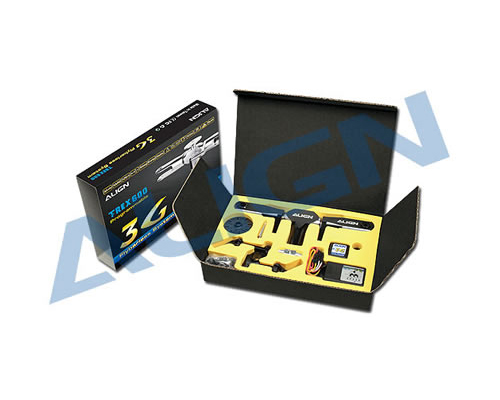

Accessories:

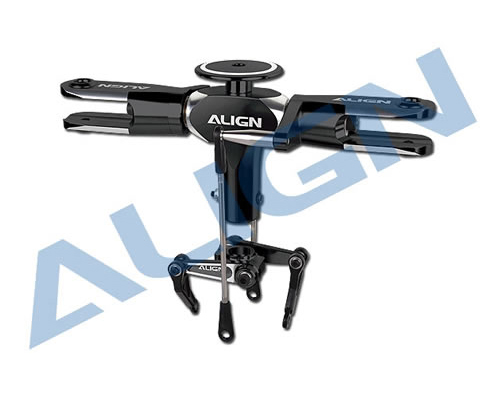

- Main Rotor head Set x 1

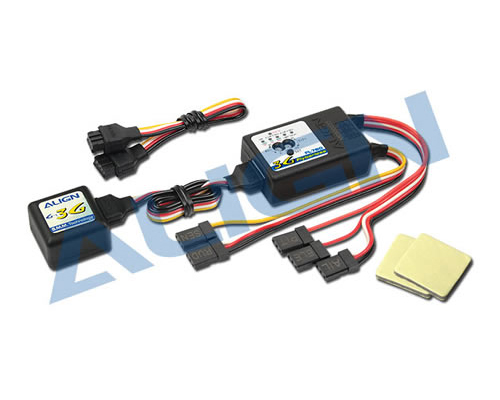

- Flybarless control unit x 1
- Flybarless Sensor x 1
- Head Stopper x 1
- F servo horns x 3
- Main Rotor head Set x 1
- Linkage ball A x 2
- Sensor mounting foam x 2
- Signal extension wire 100 mm x 1
- Signal extension wire 220 mm x 1
- Pitch Gauge x 1
- Mixing base assembly x 1
- Screw bag x 1
- Linkage rod A x 2
