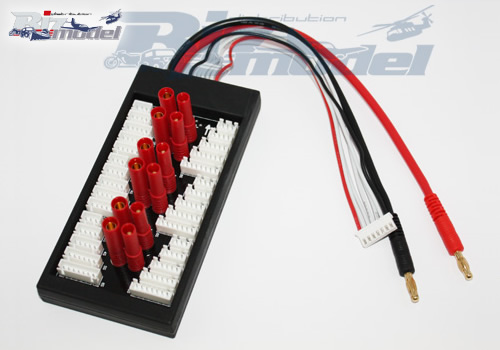

Parallel Charge Board for JST-XH - HXT 4 mm Bullet Codice: BIZ-BCA094 Prezzo: €24.00 Parallel Charge Board for JST-XH - HXT 4 mm Bullet. This product is designed to work with a balance charger to charge - balance up to 6 batteries (including lithium , lipo, life, lion) at the same time. It is simple, reliable, safe and cheap. Instruction: - 1. Connect the balance lead to the balance socket of your charger and the parallel charging board. - 2. Connect the power cable of the parallel charging board to the output port of your charger. - 3. Connect batteries to the parallel charging board always connect the balance leads first, then connect the power cable. Set the charging voltage - current on your charger by using the following method. - V: charge voltage - V: the charge voltage of each battery - n: the qty of battery Note: - 1. Please make sure to use the same cell number of batteries. - 2. If the maximum output current of your balance charger is smaller than the I value please set your charger to its maximum current output. - 3. The max current of this parallel charging board is 30 A. - 1. Housing: XH FM 2-6S - 2. Wire: 12 AWG L=300 mm - 3. Balance Wire: JST XH 6S M to M L=200 mm Richiedi la disponibilità del prodotto Quantità: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 30 Acquista e paga subito con Trova video Discuti sul forum Cerca nel blog Mercatino dell'usato Se non specificato chiaramente, tutti gli articoli sul sito sono in scatola di montaggio e le istruzioni di montaggio (se disponibili) in inglese!
