MC8 Multichecker

Codice: TK31600
Prezzo: €42.90

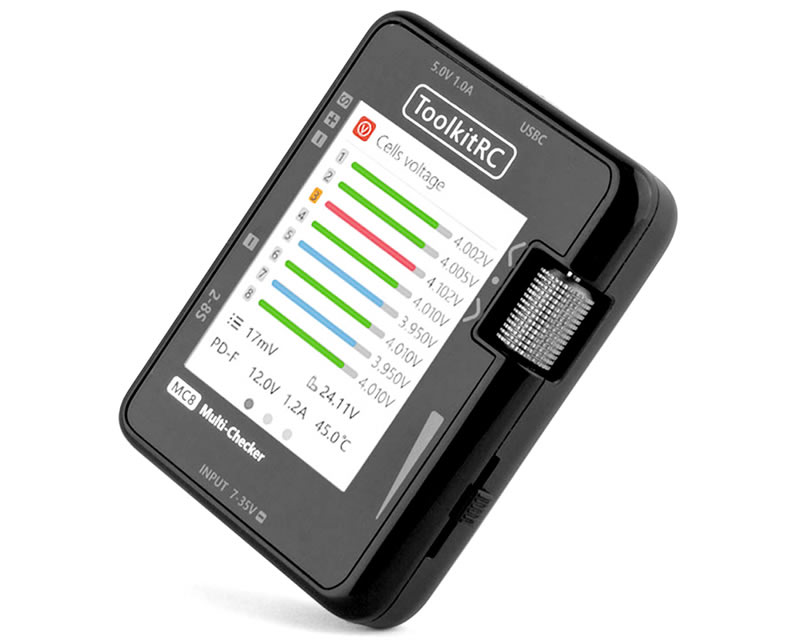

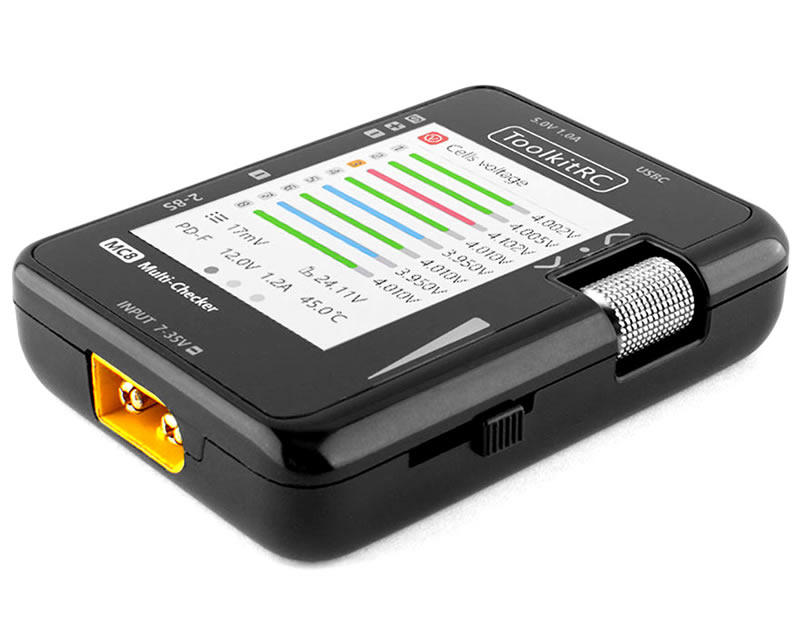

ToolkitRC - MC8 Multichecker.

The MC8 is a compact tool and measuring device. The sleek design, combined with the vibrant color IPS display, makes it easy and enjoyable to use. And with exceptional accuracy down to 5mV, this multi-checker sets a new standard in precision. Whether You're a drone enthusiast, RC car racer, or simply tech-savvy, the MC8 is the ideal companion for battery testing and monitoring.

Features:
- Measures and balances lithium batteries
- Measurement and output of different signals (PWM, PPM, SBUS)
- Wide input voltage range with DC 7.0-35.0V
- Includes main, balance, and signal inputs

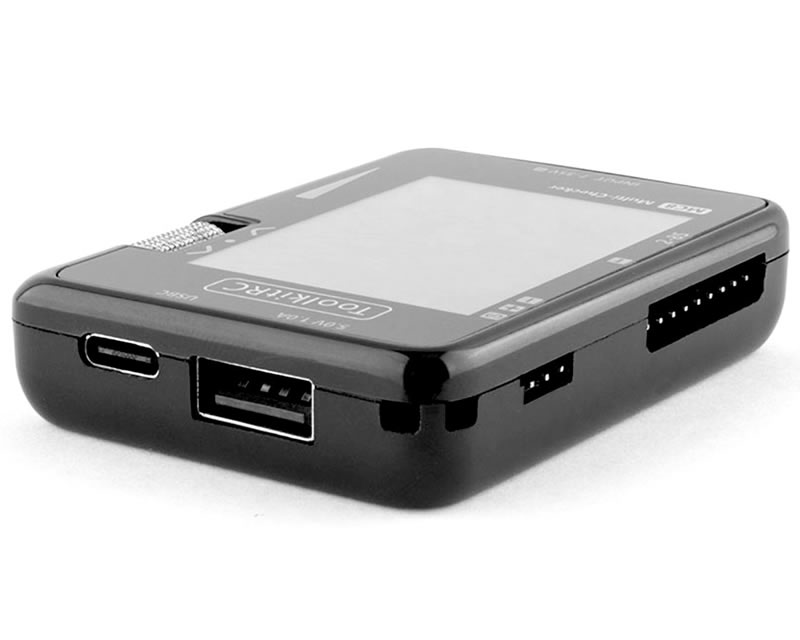

- USB-A, USB-C dual output
- USB-C 20 PD fast charging output
- Overcharge protection

Technical Specifications:
- Main Port: XT60 7.0V-35.0V
- Balance Port: 0.5V-5.0V Lixx, 2-8S
- Balance Current: max. 60mA, 2-8S
- USB-A Output: 5.0V, 1.0A Firmware Upgrade
- USB-C Output: 5.0V-12.0V, max. 20W
- USB-C Protocol: PD3.0, QC3.0, AFC, SCP, FCP
- Display: LCD, IPS 2.0'', 240x240px
- Dimensions: 68x50x15mm
- Weight: 50g

Measurement - Output:
- Measurement PWM: 500us-2500us, 20-400hz
- Measurement PPM: 880us-2200us x8 CH, 20-50hz
- Measurement SBUS: 880us-2200us x16 CH, 20-100hz
- Output PWM: 1000us-2000us, 20-1000hz
- Output PPM: 880us-2200us x8 CH, 20-50Hz
- Output SBUS: 880us-2200us x16 CH, 20-74Hz

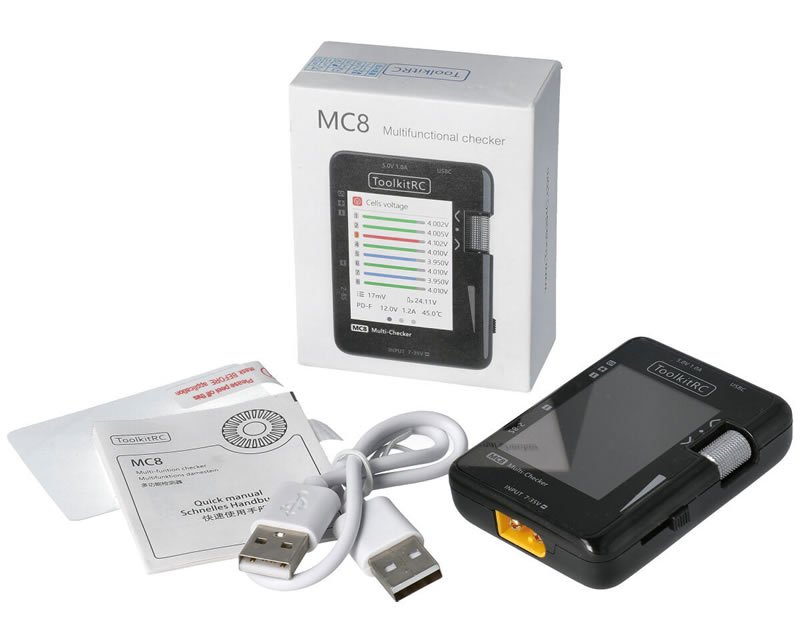

Delivery:
- 1x MC8 Multichecker
- 1x USB Cable
- 1x Display protection
- 1x Manual
